Dify 插件开发体系

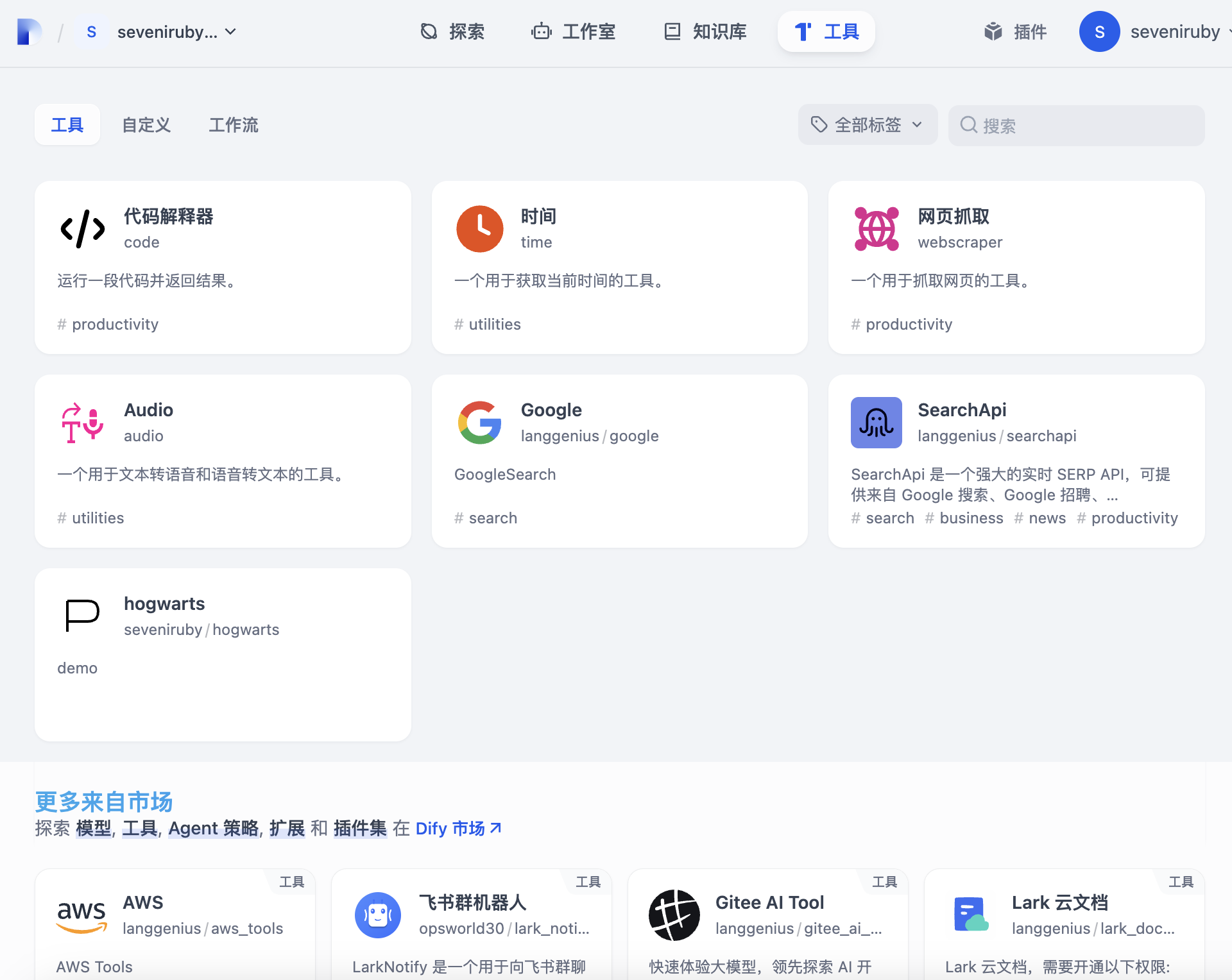

工具介绍

工具使用户可以在 Dify 上创建更强大的 AI 应用，如你可以为智能助理型应用（Agent）编排合适的工具，它可以通过任务推理、步骤拆解、调用工具完成复杂任务。

方便将你的应用与其他系统或服务连接，与外部环境交互，如代码执行、对专属信息源的访问等。

自定义工具

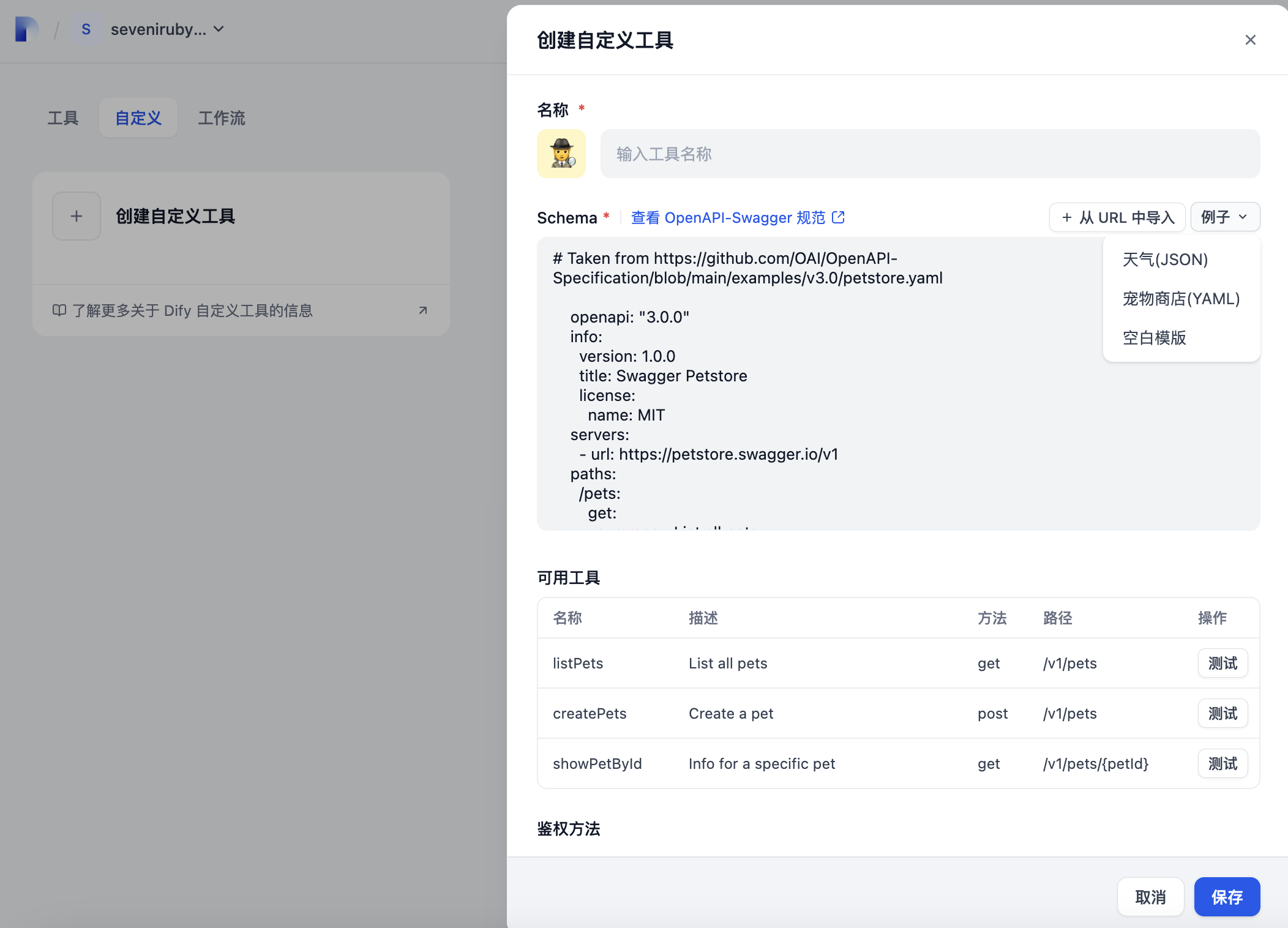

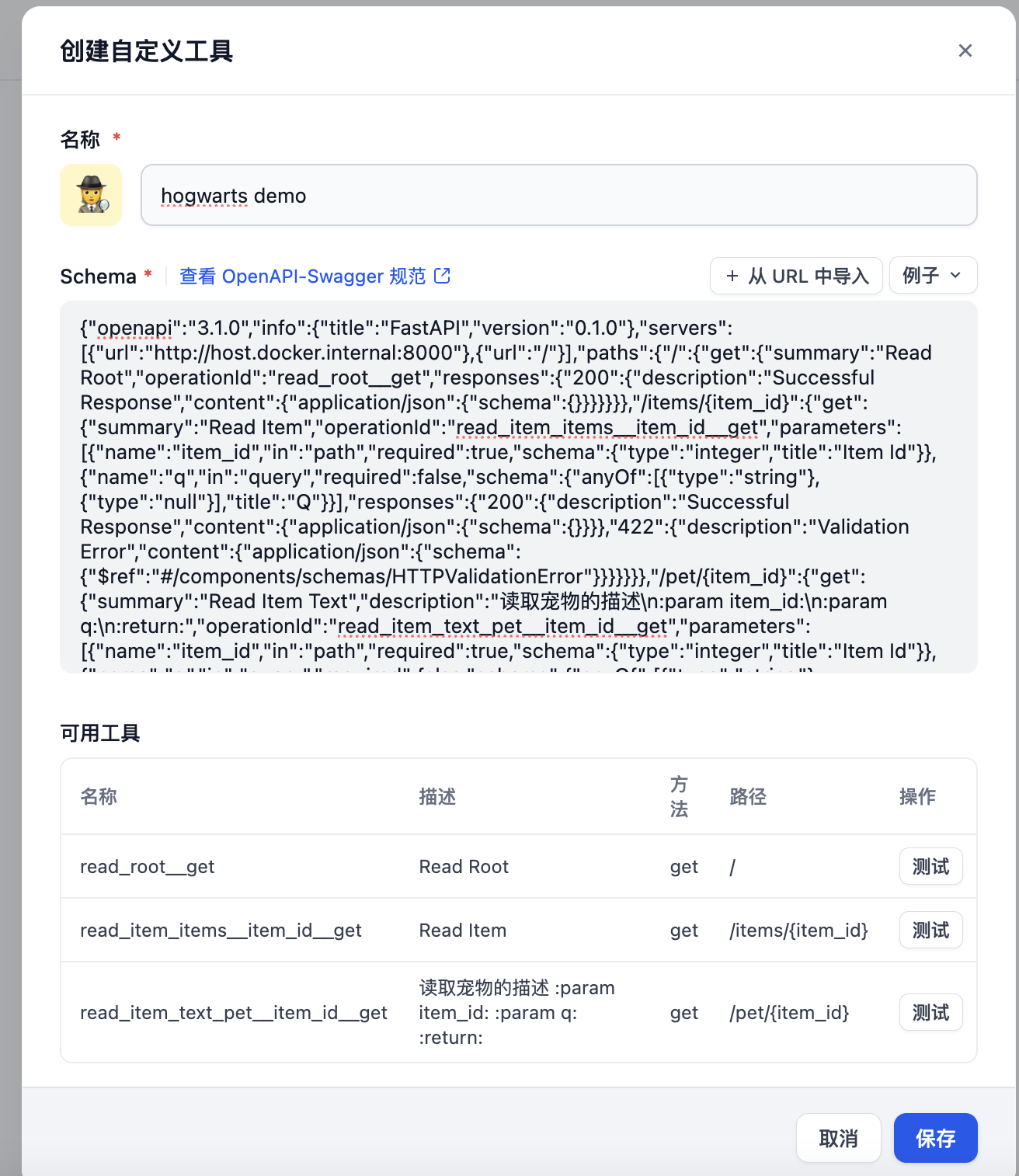

在“工具-自定义工具”内可以导入自定义的 API 工具，目前支持 OpenAPI / Swagger 和 ChatGPT Plugin 规范。你可以将 OpenAPI schema 内容直接粘贴或从 URL 内导入

编写具备 OpenAPI/Swagger 规范的接口

from fastapi import FastAPI

app = FastAPI(
    servers=[
        {
            # 给docker内的宿主机使用
            'url': 'http://host.docker.internal:8000'
        },
        {
            # 本地调试用
            'url': '/'
        }
    ]
)


@app.get("/")
def read_root():
    return {"Hello": "World"}

FastAPI 在编写接口方面具备优势
Flask Django 也可以实现，可以参考他们各自的 Swagger 支持

接口文档

/redoc redoc 文档地址

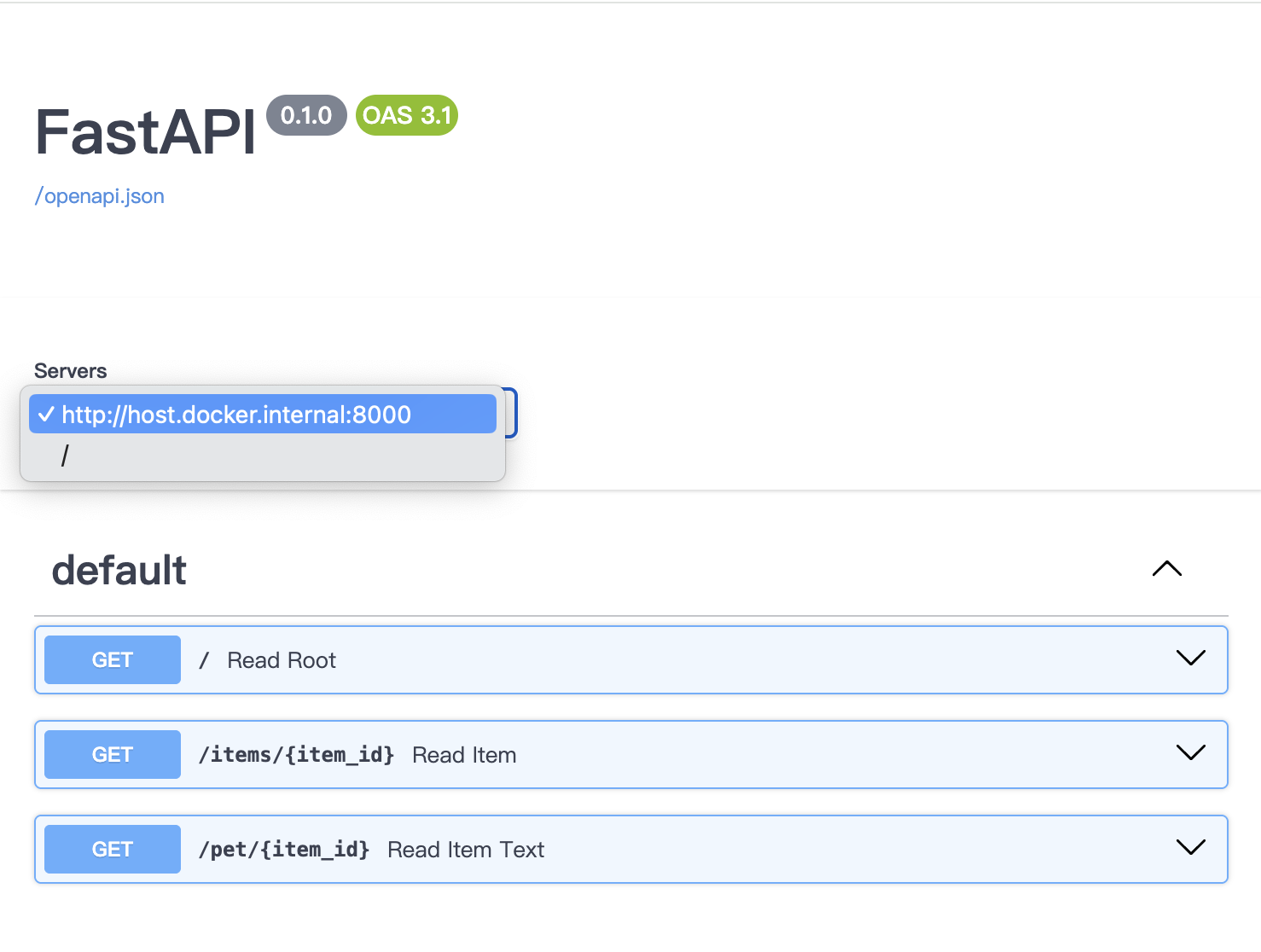

/docs swagger docs 文档地址

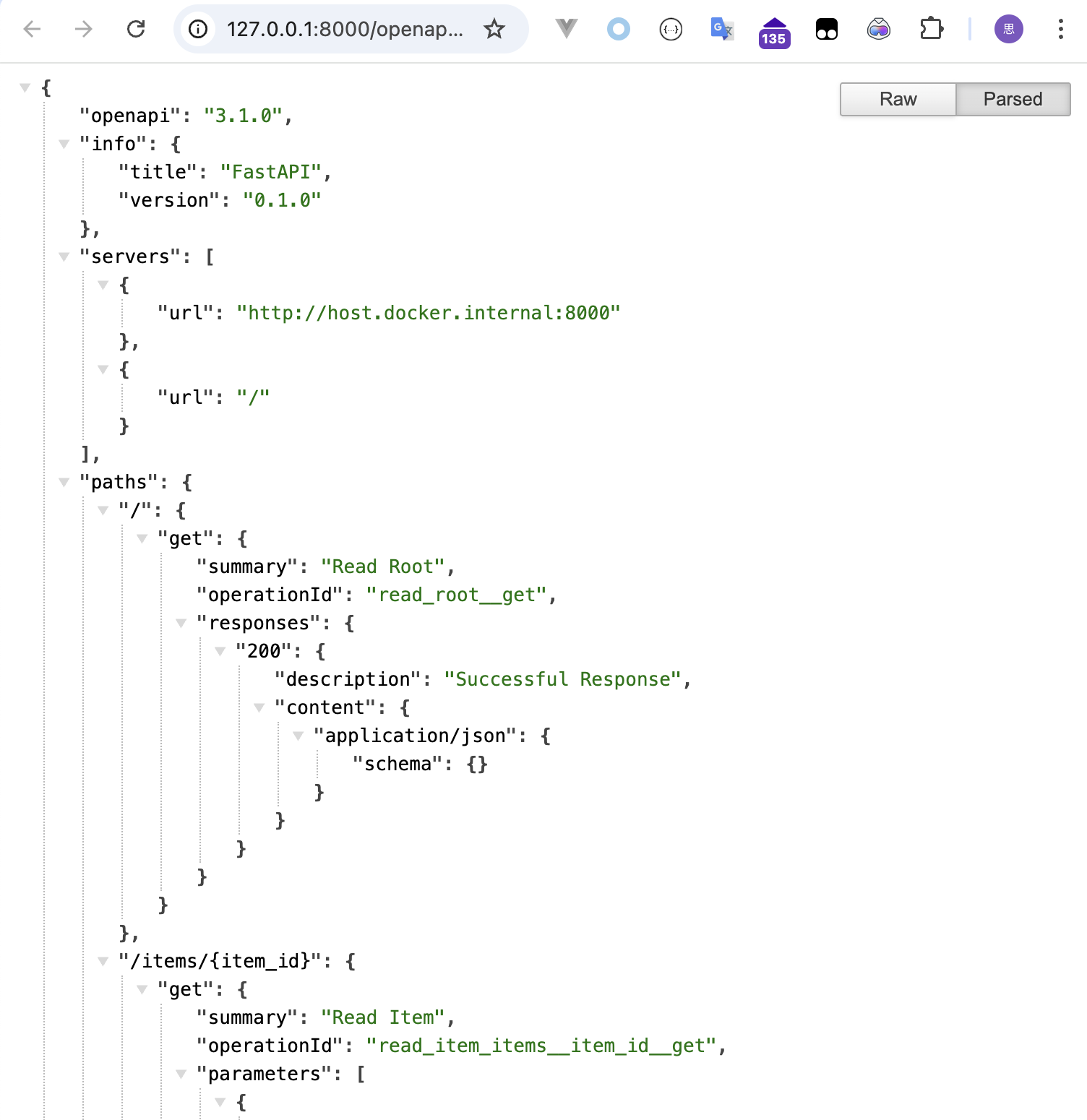

/openapi.json openapi/swagger schema

openapi 规范

第一方工具开发

第一方工具源代码位置

0.15 版本 api/core/tools/provider/builtin
1.0 版本 api/core/tools/builtin_tool/providers/
官方开发教程
1.0 版本后官方推荐使用插件开发模式

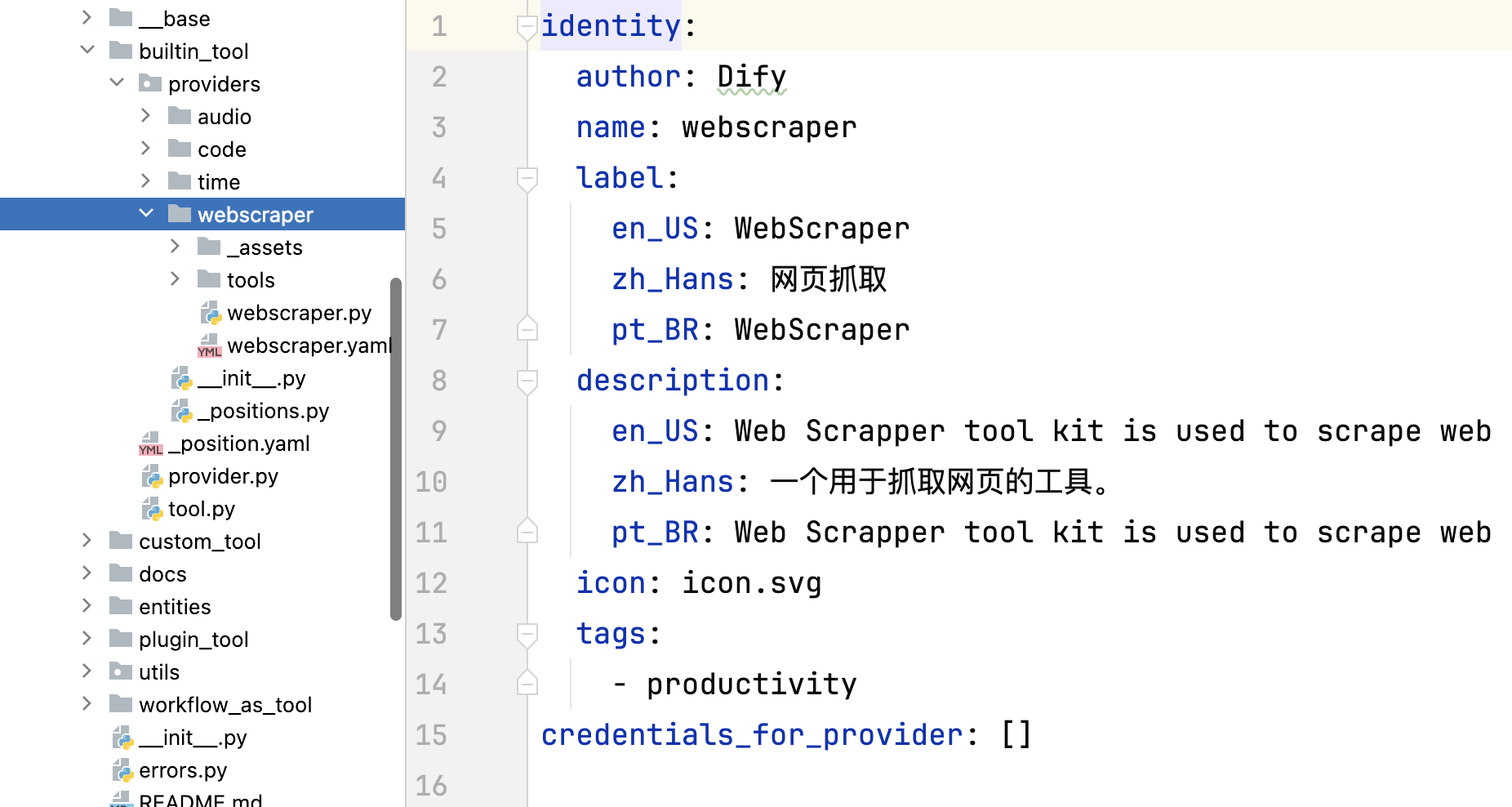

工具目录结构与代码

webscraper.yaml
tools
tools/webscraper.yaml

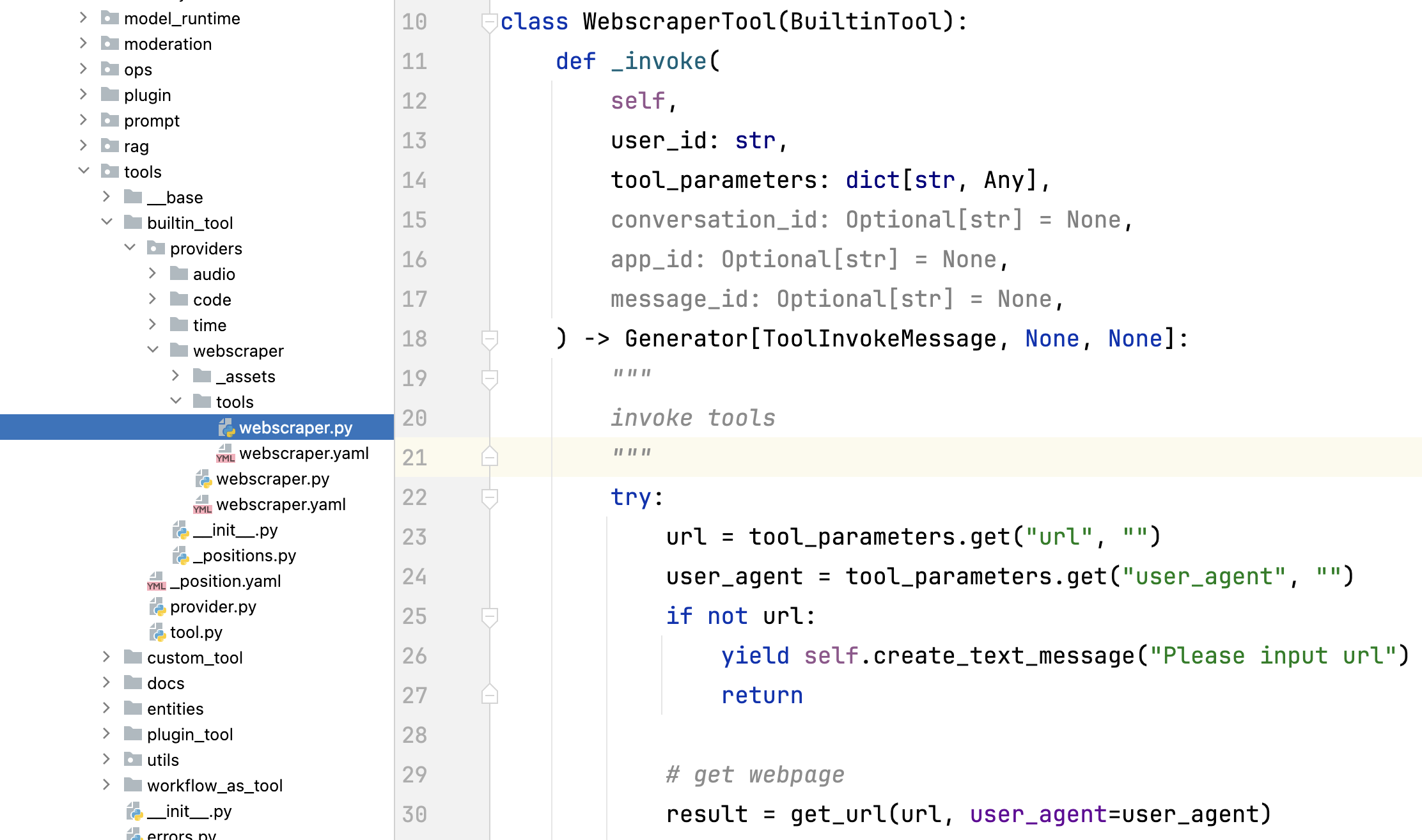

tools/webscraper.py
_assets
_assets/icon.svg
webscraper.py

{.text-sm}

插件开发

插件介绍

为了让开发过程更加敏捷，dify 决定开放生态并提供完善的插件开发 SDK，让每位开发者都能够轻松地打造属于自己的工具，轻松使用第三方模型与工具，显著提升应用能力。

新的插件系统突破了原有框架的限制，提供更丰富和强大的扩展能力。提供五种类型插件，每一种类型对应成熟的场景解决方案，赋予开发者用无限的创意改造 Dify 应用的空间。

1.0 版本以上具备插件能力

插件类型

_

Models（模型）

各类 AI 模型的接入插件，支持模型服务商和自定义模型两种类型，能够极大降低配置和调用 LLM API 的门槛。关于模型插件的开发详情，请参考快速开始： Model 插件。

Tools（工具）

工具指的是能够被 Chatflow / Workflow / Agent 类型应用所调用的第三方服务。提供完整的 API 实现能力，用于增强 Dify 应用的能力。例如开发一个 Google 搜索插件，详情请参考快速开始：Tool 插件。

Agent 策略

Agent 策略插件能够定义 Agent 节点内部的推理和决策逻辑，包括 LLM 对于工具选择、调用以及对返回结果的处理逻辑。关于更多开发指引，请参考快速开始： Agent 策略插件。

Extensions（扩展）

仅提供 Endpoint 能力，为简单场景设计的轻量级方案。仅通过调用 HTTP 服务即可调用扩展功能，适用于只需要基础 API 调用的简单集成场景。关于扩展插件的开发详情，请参考快速开始：Extension 插件。

插件开发方法

下载 dify cli
插件项目初始化 dify plugin init
插件配置编写 yaml 配置文件

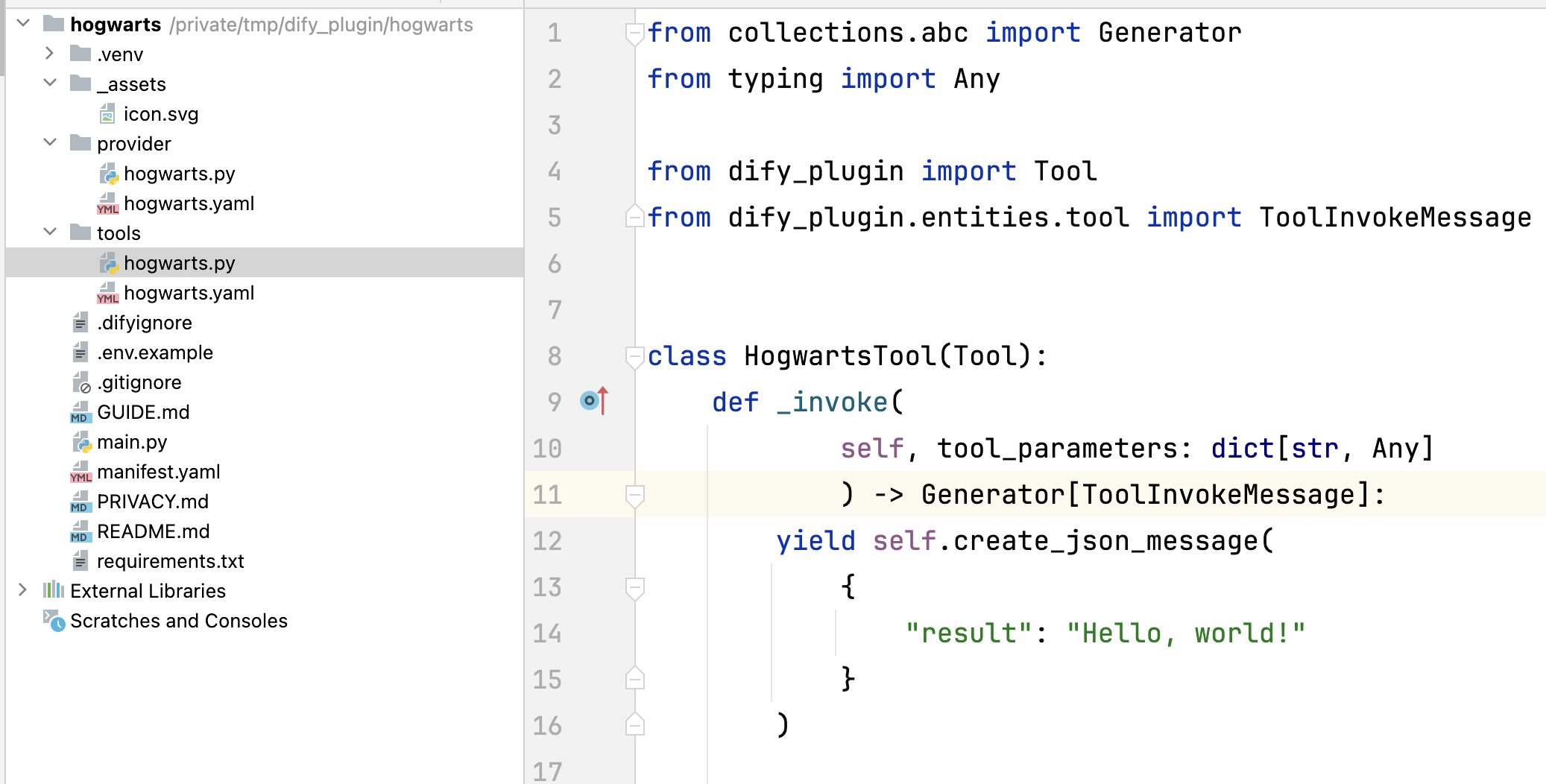

插件开发编写 Python 逻辑
插件打包 dify plugin package ./google

GoogleSearchTool 代码

from collections.abc import Generator
from typing import Any

import requests

from dify_plugin import Tool
from dify_plugin.entities.tool import ToolInvokeMessage

SERP_API_URL = "https://serpapi.com/search"

class GoogleSearchTool(Tool):
    def _parse_response(self, response: dict) -> dict:
        result = {}
        if "knowledge_graph" in response:
            result["title"] = response["knowledge_graph"].get("title", "")
            result["description"] = response["knowledge_graph"].get("description", "")
        if "organic_results" in response:
            result["organic_results"] = [
                {
                    "title": item.get("title", ""),
                    "link": item.get("link", ""),
                    "snippet": item.get("snippet", ""),
                }
                for item in response["organic_results"]
            ]
        return result

    def _invoke(self, tool_parameters: dict[str, Any]) -> Generator[ToolInvokeMessage]:
        params = {
            "api_key": self.runtime.credentials["serpapi_api_key"],
            "q": tool_parameters["query"],
            "engine": "google",
            "google_domain": "google.com",
            "gl": "us",
            "hl": "en",
        }

        response = requests.get(url=SERP_API_URL, params=params, timeout=5)
        response.raise_for_status()
        valuable_res = self._parse_response(response.json())

        yield self.create_json_message(valuable_res)

Agent 策略插件代码示例

import json
import time
from collections.abc import Generator
from typing import Any, cast

from dify_plugin.entities.agent import AgentInvokeMessage
from dify_plugin.entities.model.llm import LLMModelConfig, LLMResult, LLMResultChunk
from dify_plugin.entities.model.message import (
    PromptMessageTool,
    UserPromptMessage,
)
from dify_plugin.entities.tool import ToolInvokeMessage, ToolParameter, ToolProviderType
from dify_plugin.interfaces.agent import AgentModelConfig, AgentStrategy, ToolEntity
from pydantic import BaseModel

class BasicParams(BaseModel):
    maximum_iterations: int
    model: AgentModelConfig
    tools: list[ToolEntity]
    query: str

class BasicAgentAgentStrategy(AgentStrategy):
    def _invoke(self, parameters: dict[str, Any]) -> Generator[AgentInvokeMessage]:
        params = BasicParams(**parameters)
        function_call_round_log = self.create_log_message(
            label="Function Call Round1 ",
            data={},
            metadata={},
        )
        yield function_call_round_log
        model_started_at = time.perf_counter()
        model_log = self.create_log_message(
            label=f"{params.model.model} Thought",
            data={},
            metadata={"start_at": model_started_at, "provider": params.model.provider},
            status=ToolInvokeMessage.LogMessage.LogStatus.START,
            parent=function_call_round_log,
        )
        yield model_log
        chunks: Generator[LLMResultChunk, None, None] | LLMResult = (
            self.session.model.llm.invoke(
                model_config=LLMModelConfig(**params.model.model_dump(mode="json")),
                prompt_messages=[UserPromptMessage(content=params.query)],
                tools=[
                    self._convert_tool_to_prompt_message_tool(tool)
                    for tool in params.tools
                ],
                stop=params.model.completion_params.get("stop", [])
                if params.model.completion_params
                else [],
                stream=True,
            )
        )
        response = ""
        tool_calls = []
        tool_instances = (
            {tool.identity.name: tool for tool in params.tools} if params.tools else {}
        )
        tool_call_names = ""
        tool_call_inputs = ""
        for chunk in chunks:
            # check if there is any tool call
            if self.check_tool_calls(chunk):
                tool_calls = self.extract_tool_calls(chunk)
                tool_call_names = ";".join([tool_call[1] for tool_call in tool_calls])
                try:
                    tool_call_inputs = json.dumps(
                        {tool_call[1]: tool_call[2] for tool_call in tool_calls},
                        ensure_ascii=False,
                    )
                except json.JSONDecodeError:
                    # ensure ascii to avoid encoding error
                    tool_call_inputs = json.dumps(
                        {tool_call[1]: tool_call[2] for tool_call in tool_calls}
                    )
                print(tool_call_names, tool_call_inputs)
            if chunk.delta.message and chunk.delta.message.content:
                if isinstance(chunk.delta.message.content, list):
                    for content in chunk.delta.message.content:
                        response += content.data
                        print(content.data, end="", flush=True)
                else:
                    response += str(chunk.delta.message.content)
                    print(str(chunk.delta.message.content), end="", flush=True)

            if chunk.delta.usage:
                # usage of the model
                usage = chunk.delta.usage

        yield self.finish_log_message(
            log=model_log,
            data={
                "output": response,
                "tool_name": tool_call_names,
                "tool_input": tool_call_inputs,
            },
            metadata={
                "started_at": model_started_at,
                "finished_at": time.perf_counter(),
                "elapsed_time": time.perf_counter() - model_started_at,
                "provider": params.model.provider,
            },
        )
        yield self.create_text_message(
            text=f"{response or json.dumps(tool_calls, ensure_ascii=False)}\n"
        )
        result = ""
        for tool_call_id, tool_call_name, tool_call_args in tool_calls:
            tool_instance = tool_instances[tool_call_name]
            tool_invoke_responses = self.session.tool.invoke(
                provider_type=ToolProviderType.BUILT_IN,
                provider=tool_instance.identity.provider,
                tool_name=tool_instance.identity.name,
                parameters={**tool_instance.runtime_parameters, **tool_call_args},
            )
            if not tool_instance:
                tool_invoke_responses = {
                    "tool_call_id": tool_call_id,
                    "tool_call_name": tool_call_name,
                    "tool_response": f"there is not a tool named {tool_call_name}",
                }
            else:
                # invoke tool
                tool_invoke_responses = self.session.tool.invoke(
                    provider_type=ToolProviderType.BUILT_IN,
                    provider=tool_instance.identity.provider,
                    tool_name=tool_instance.identity.name,
                    parameters={**tool_instance.runtime_parameters, **tool_call_args},
                )
                result = ""
                for tool_invoke_response in tool_invoke_responses:
                    if tool_invoke_response.type == ToolInvokeMessage.MessageType.TEXT:
                        result += cast(
                            ToolInvokeMessage.TextMessage, tool_invoke_response.message
                        ).text
                    elif (
                        tool_invoke_response.type == ToolInvokeMessage.MessageType.LINK
                    ):
                        result += (
                            f"result link: {cast(ToolInvokeMessage.TextMessage, tool_invoke_response.message).text}."
                            + " please tell user to check it."
                        )
                    elif tool_invoke_response.type in {
                        ToolInvokeMessage.MessageType.IMAGE_LINK,
                        ToolInvokeMessage.MessageType.IMAGE,
                    }:
                        result += (
                            "image has been created and sent to user already, "
                            + "you do not need to create it, just tell the user to check it now."
                        )
                    elif (
                        tool_invoke_response.type == ToolInvokeMessage.MessageType.JSON
                    ):
                        text = json.dumps(
                            cast(
                                ToolInvokeMessage.JsonMessage,
                                tool_invoke_response.message,
                            ).json_object,
                            ensure_ascii=False,
                        )
                        result += f"tool response: {text}."
                    else:
                        result += f"tool response: {tool_invoke_response.message!r}."

                tool_response = {
                    "tool_call_id": tool_call_id,
                    "tool_call_name": tool_call_name,
                    "tool_response": result,
                }
        yield self.create_text_message(result)

    def _convert_tool_to_prompt_message_tool(
        self, tool: ToolEntity
    ) -> PromptMessageTool:
        """
        convert tool to prompt message tool
        """
        message_tool = PromptMessageTool(
            name=tool.identity.name,
            description=tool.description.llm if tool.description else "",
            parameters={
                "type": "object",
                "properties": {},
                "required": [],
            },
        )

        parameters = tool.parameters
        for parameter in parameters:
            if parameter.form != ToolParameter.ToolParameterForm.LLM:
                continue

            parameter_type = parameter.type
            if parameter.type in {
                ToolParameter.ToolParameterType.FILE,
                ToolParameter.ToolParameterType.FILES,
            }:
                continue
            enum = []
            if parameter.type == ToolParameter.ToolParameterType.SELECT:
                enum = (
                    [option.value for option in parameter.options]
                    if parameter.options
                    else []
                )

            message_tool.parameters["properties"][parameter.name] = {
                "type": parameter_type,
                "description": parameter.llm_description or "",
            }

            if len(enum) > 0:
                message_tool.parameters["properties"][parameter.name]["enum"] = enum

            if parameter.required:
                message_tool.parameters["required"].append(parameter.name)

        return message_tool

    def check_tool_calls(self, llm_result_chunk: LLMResultChunk) -> bool:
        """
        Check if there is any tool call in llm result chunk
        """
        return bool(llm_result_chunk.delta.message.tool_calls)

    def extract_tool_calls(
        self, llm_result_chunk: LLMResultChunk
    ) -> list[tuple[str, str, dict[str, Any]]]:
        """
        Extract tool calls from llm result chunk

        Returns:
            List[Tuple[str, str, Dict[str, Any]]]: [(tool_call_id, tool_call_name, tool_call_args)]
        """
        tool_calls = []
        for prompt_message in llm_result_chunk.delta.message.tool_calls:
            args = {}
            if prompt_message.function.arguments != "":
                args = json.loads(prompt_message.function.arguments)

            tool_calls.append(
                (
                    prompt_message.id,
                    prompt_message.function.name,
                    args,
                )
            )

        return tool_calls

总结

dify 提供了强大的插件体系，可以满足各种定制开发，改造 dify 可以实现大多数 AI 测试场景

后面的 LangChain LangGraph 课程中开发的工具，可以集成到 Dify 中快速实现平台化应用
